CWWK AMD 7840HS/8845HS/7940HS 8-bay/9-bay NAS/USB4/40G Rate 8K Display 4 Network 2.5G/9 SATA/PCIe x16 ITX Motherboard (AMD 8845HS NAS Board+Fan)
Product details
| Management number | 212251808 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212251808 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

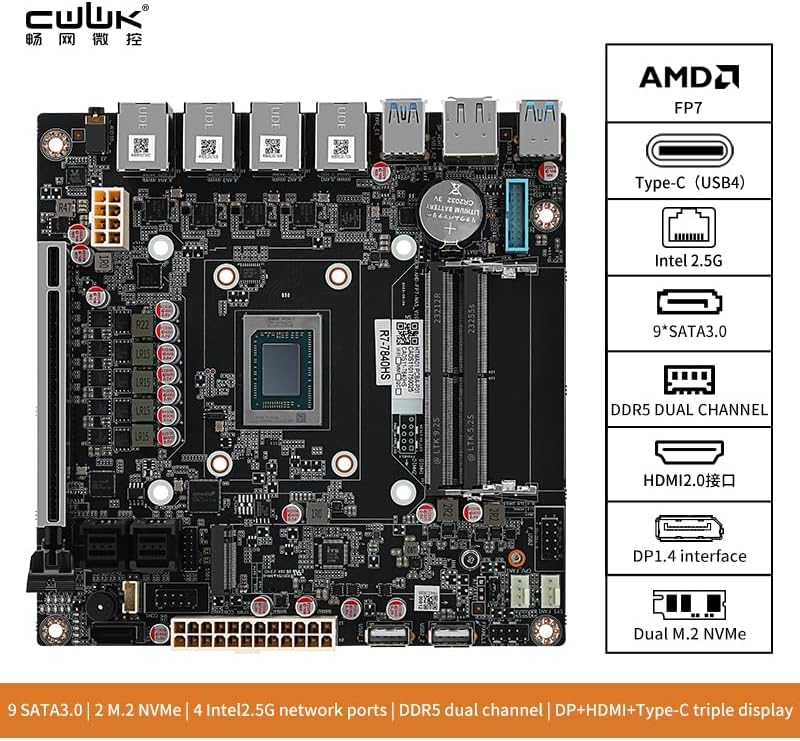

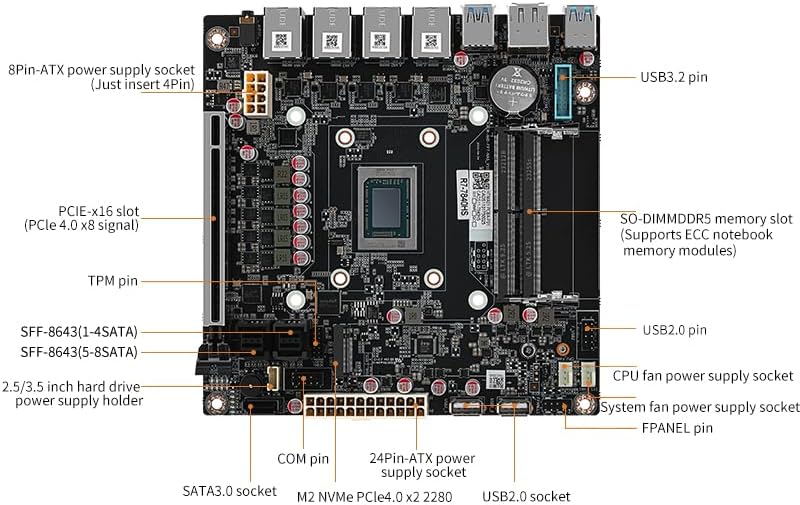

Motherboard features - Matte black PCB - High-density moisture-free fiber 10-layer circuit board - Full protection (supports all USB, audio, and network interfaces) processor: - AMD Ryzen 7 7840HS 8(Threads:16) 16M Cache, Up to 5.1CHz Network card: -4*Inteli226-V2.5G RJ45 electrical port Memory: -Support SO-DIMM DDR5 memory technology -2*SO-DIMM DDR5 memory slot -DDR5 supports 5600 by default and is compatible with 4800/5200MHz (supports ECC notebook memory) -Maximum capacity of single memory: 32GB, maximum capacity of dual channel: 64GB storage: -2*M.2 NVMe PCle4.0x2 signal, one name on the front and back (2280) -2'SFF-8643 A total of 9 SATA3.0 (6Gbps) TDP: -Basic power consumption (35-54W) Power supply: -ATX24PIN+8PIN (recommended to use 500W or more power supply with 9 disks) Onboard interface: -2*SFF-8643 sockets (supports one to four SATA3.0) -1*SATA3.0 socket -1*SATA4PIN provided by the socket -2"USB2.0 socket -1*PCI-E ×16 slot (×8 signal) -1*JCOM pin -1*FPANEL switch LED/PWR pin -1*4PIN fan power supply pin: 2.54 pitch -1*TPM pin header -1*USB2.0 pin -1*USB3.2 pin -2*M.2 NVMe PCIE4.0x2 2280 -1*ATX 24+8PIN power supply socket I0 panel - 2*USB3.2 -1"DP1.4 - 1* HDMI2.0 - 1*Type-C(USB4) - 1*USB3.2 - 4*Intel 2.5G RJ45 - 1*Audio structure -Mini-ITX specifications: 6.7-in x 6.7-in, 17.0cmx17.0cm -Solid capacitor design operating system -1 Microsoft Windows 10/11 64-Dit -Support Linux *Only supports EFI mode
- Equipped with AMD "Zen4" architecture Ryzen5/7/9 series high-performance processors,AMD Ryzen AI Performance up to 10 TOPS
- 17x17 standard Mini-ITX form factor, compatible with LGA1700 series CPU coolers 1 PCI-E x16 slot PCIe4.0 x8 signal supports expansion of graphics card/network card etc
- 2 M.2 NVMe (PCIe4.0 x2) slots 2280 size;2 SFF-8643 sockets support one to four via cable and support 9 SATA3.0
- Dual-channel SO-DIMM DDR5 slot supports 5600MHz backward compatibility by default; supports server-level ECC notebook strips
- 3 USB3.2+1 Type-C (USB4) interface 40Gbps rate

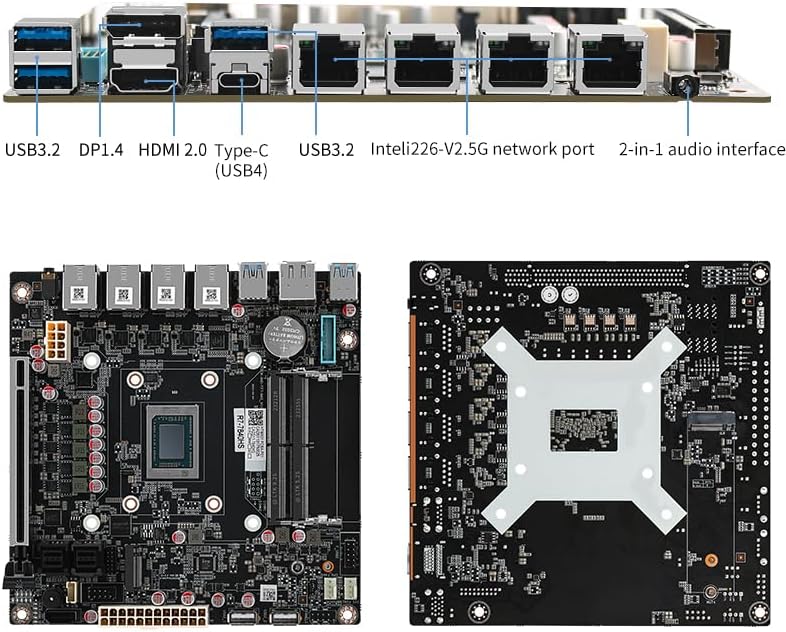

- 4 Intel i226-V 2.5G RJ45 UDE network ports support All in One and other applications HDMI+DP+Type-C triple display output, supports 4K@60Hz
- Built-in set of USB3.2 pin sockets, which can be connected to the panel through a link cable
- Built-in two USB2.0 sockets, support U disk encryption and other applications and partial system boot
| Brand | CWWK PC |
|---|---|
| USB 20 | 2 |
| Platform | Linux |
| Model Name | NAS Board-AMD |
| Chipset Type | AMD Ryzen |
| Manufacturer | CWWK |
| Model Number | NAS Board-AMD |
| Number of Ports | 26 |
| Total Usb Ports | 3 |
| Processor Socket | Socket A |
| Total PCIe Ports | 2 |
| Total SATA Ports | 2 |
| Compatible Devices | Router |
| Memory Clock Speed | 5600 MHz |
| SPDIF Connector Type | Optical |
| Warranty Description | 1 |
| Compatible Processors | AMD Ryzen |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 2 |
| Graphics Card Interface | PCI Express 4.0 |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 64 GB |
| Number of Ethernet Ports | 4 |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
