Keenso Electric Sine Controller, 36V 48V 15A Conversion Kit for 250W Brushless Motor - Perfect for DIY Projects, Electric Scooters, and Power Tools

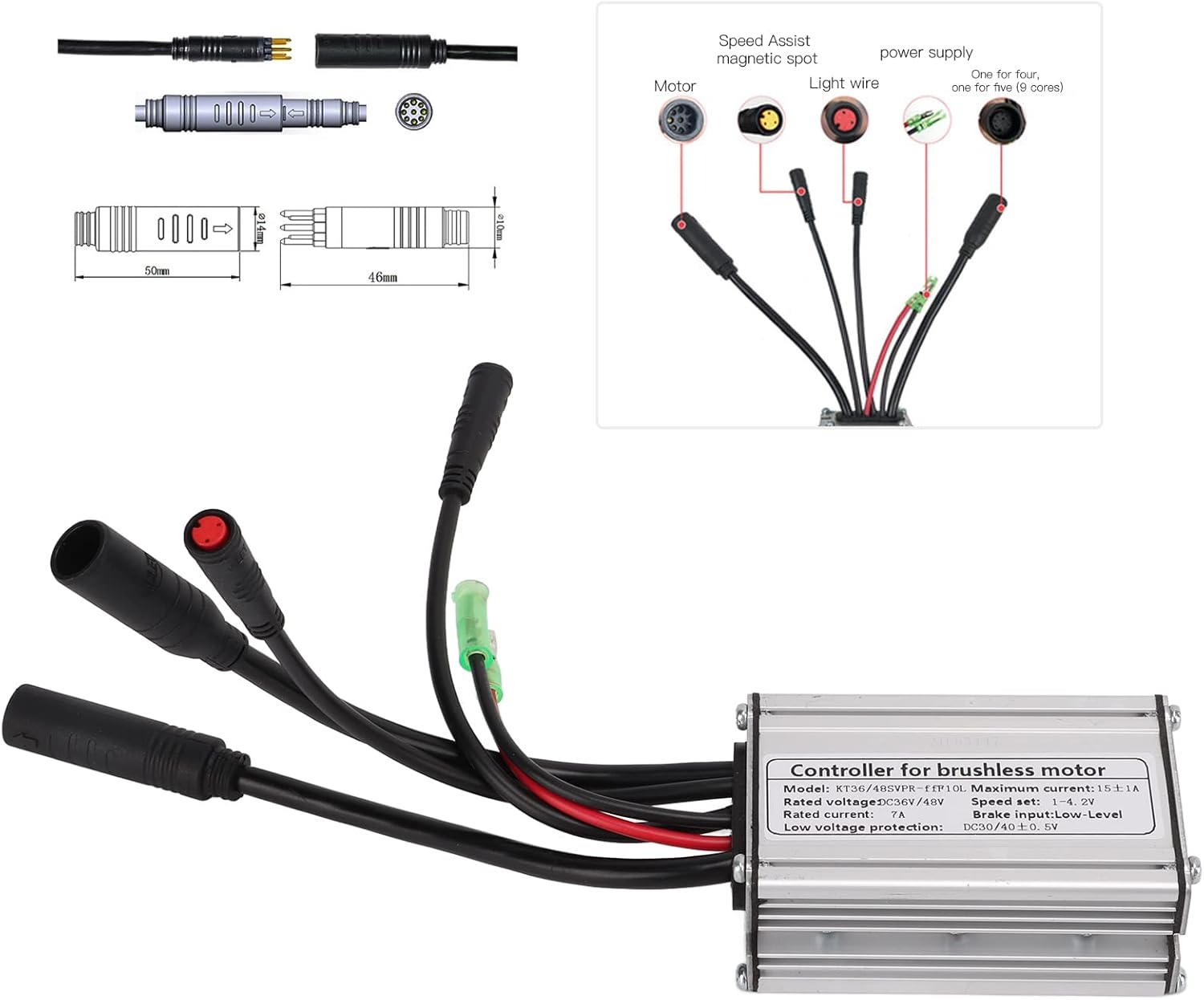

Specifications:Item Type: ControllerMaterial: Aluminum AlloyController Box Size: Approx. 82x52x31mm/3.2x2.0x1.2inController Type: Sine ControllerConnector Type: ConnectorMaximum Current: 15±1ARated Voltage: DC 36V/48VSpeed Setting: 1-4.2VRated Current: 7ABrake Input: Low LevelLow Voltage : DC 30/40±0.5VController Wire Color Definition:1. Black Long Wire: motor wire2. Red, Black Single Short Wire: power wire3. Black Long Line (Fine Hole): one to four / one to five (9 cores)4. Black Line Red light wire5. Black Line Yellow PAS wireHow to Use:Controller wiring instructions: Connect the corresponding line interface to realize the function.Package List:1 x Controller1 x ManualNotice:It should be compatible with products with the same communication protocol, only suitable for KT series products. The motor does not need a brand, and the joint matching can be used.

• Applicable Motor: The brushless motor controller is easy to install and use, equipped with wiring identification instructions, and is usually suitable for 250W brushless motors.
• Current and Voltage: Maximum current is 15¡À1A, rated voltage is DC 36V/48V, speed setting is 1?4.2V, rated current is 7A, low voltage is DC 30/40¡À0.5V.
• Brushless Motor Controller: The brushless motor controller can provide stable speed and sensitive braking and direction change control, make your ride smoother and safer.
• Function: The function ensures maximum durability in any weather conditions, and the high performance wires and interfaces are , ensuring low failure rate for long term use.
• Good Heat Dissipation: The controller shell is made of metal with design, good heat dissipation function, can the internal circuit and avoid thermal overload.
