Mini ITX DC Power Supply, 350w ITX Power Supply, 19V Mini ITX Motherboard 200W Computer Power Supply, with Overvoltage and Short Circuit
Product details
| Management number | 212251710 | Release Date | 2026/04/06 | List Price | $12.43 | Model Number | 212251710 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Input Characteristics: Input Voltage Range: 16VDC 24VDC Input Current Range: 12.0A @19VDC Input Current: 12.0AMax @19VDC Work Efficiency: 85% or more Output Requirement: Output (Vin=19VDC) Output Current Minimum(V) Typical Value(V) Maximum(V) Ripple (mV) Standby current Typical value Peak value +3.30V +3.14 +3.30 +3.47 50 0 8.0 10.0 +5.00VSB +4.75 +5.00 +5.25 50 0.1 2 2.5 +5.00V +4.75 +5.00 +5.25 50 0 6.0 10.0 +12.00V +11.40 12.00 +12.6 120 0 6.0 8.0 12.00V 11.40 12.00 12.6 120 0 0.1 0.15 Function: (For +3.3v , +19V , +5.00v and +5.00VSB Power Output) Overvoltage : when the output voltage reaches 1.5 times the rated voltage , the output is closed. Short Circuit : when a short circuit occurs in the output , the output is closed. Environment Description: Working Temperature ,Humidity: 0°C to 40°C , 45% 75% Storage Temperature ,Humidity: 40°C to +70°C , 10% 90% Atmospheric Pressure: 86Kpa 106Kpa Package Included: 1 Module 1 x 24pin ATX to 12V AUX 1 x 4 pin Mole Supply 1 x SATA Power 1 x 4 pin Floppy Drive Power Connection 1 x 4 pin Wire 1 x DC Input Wire Notes: 1.Please allow 1 3 cm error due to manual measurement. Thanks for your understanding. 2.Monitors are not calibrated same , item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
- Fanless design, silent.
- Polymer on the PCBA, Long life.
- DC PSU for mini ITX Motherboards.

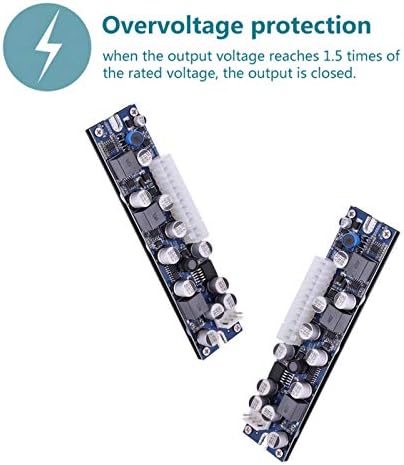

- Overvoltage : when the output voltage reaches 1.5 times the rated voltage, the output is closed.
- Short Circuit : when a short circuit occurs in the output, the output is closed.
| UPC | 798382759202 |
|---|---|
| Brand | FOSA |
| Wattage | 200 watts |
| Model Name | Silent LD 200W 19V Input Pin Power Module DC at Supply DC 24pin ATX to 12V AUX for Mini ITX Motherboards, with Overvoltage and Short Circuit |
| Form Factor | ATX |
| Item Weight | 223.5 Grams |
| Manufacturer | fosa |
| Cooling Method | Air |
| Current Rating | 12 Amps |
| Output Wattage | 200 Watts |
| Item Dimensions | 6.06 x 1.38 x 0.79 inches |
| Mfr Part Number | fosaqigde05uoh |
| Compatible Devices | Personal Computer |
| Connector Quantity | 6 |
| Power Supply Design | Internal |
| Maximum Input Voltage | 24 Volts (DC) |
| Minimum Input Voltage | 16 Volts |
| Upper Temperature Rating | 40 Degrees Celsius |
| System Bus Connector Type | 24 Pin |
| Connector Type Used on Cable | ATX |
